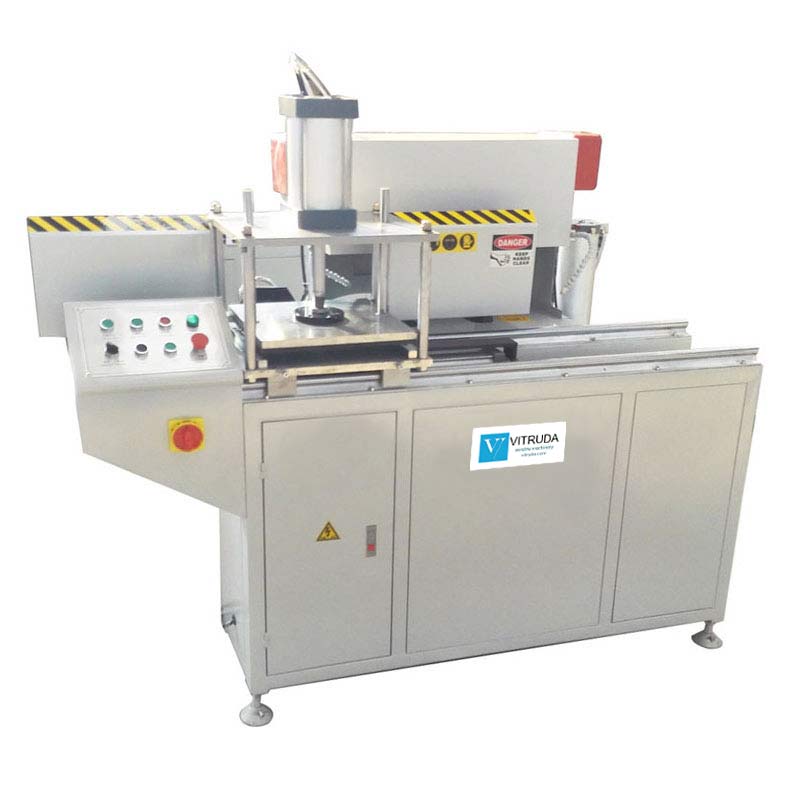

DX06A Aluminum End Milling Machine | 4 Milling Cutters

Product Item : DX06A-250
Category： Aluminum End Milling Machines
Color : gray/white
Origin： China
Application: Designed for aluminum profiles end milling
INQUIRY EMAIL

Aluminum End Milling Machine

DESCRIPTIONS

1. This aluminum end milling machine is suitable for milling end faces and step faces of various aluminum profiles. It has a large processing range and can process multiple profiles at the same time.
2. The four milling cutters are driven by motors, and the adjusting slide adopts a T-shaped guide rail to ensure machining accuracy.
3. The feeding system of the aluminum end milling machine worktable uses a motor to drive a ball screw drive, which runs smoothly.
4. Adopt hard alloy standard original disc milling cutters, which are respectively installed on four motor shafts, which can be adjusted according to the height of the profile.
5. The profile compaction adopts a pneumatic control system and is completed by a button switch, which is stable and reliable.
6. Need not ordering tools when processing various profiles, thus can decrease cost and save time.
7. Large tool diameter, high milling speed, and good processing results and it is an important aluminum window machine for making aluminum windows and doors.

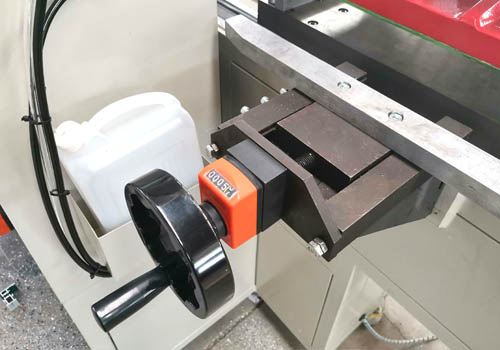

Aluminum end milling machine milling adjust hand wheel

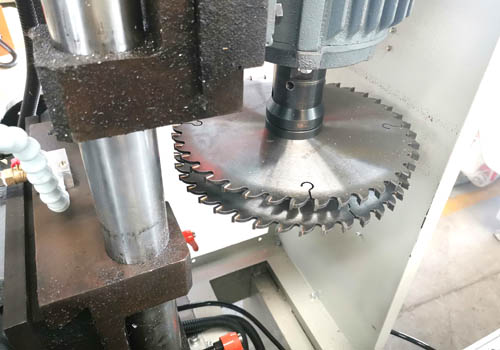

Aluminum end milling machine milling cutters

TECHNICAL SPECIFICATIONS

Input Voltage: 380 V/50 Hz
Input power: 6.6 Kw
Rating oil pressure: 12 MPa
Motor rotary speed: 2800 r/min
Dimensions:(Width×Depth×Height): 1850×1700×1200 mm
Air working pressure: 0.5~0.8 MPa
Diameter of main shaft:φ 32 mm
Diameter of milling cutter: Φ250 mm
Worktable journey: 0~1560 mm
Worktable dimension: 530×320 mm
Max processing high size: 0~68 mm
Max processing tenoning size: 0~45 mm
