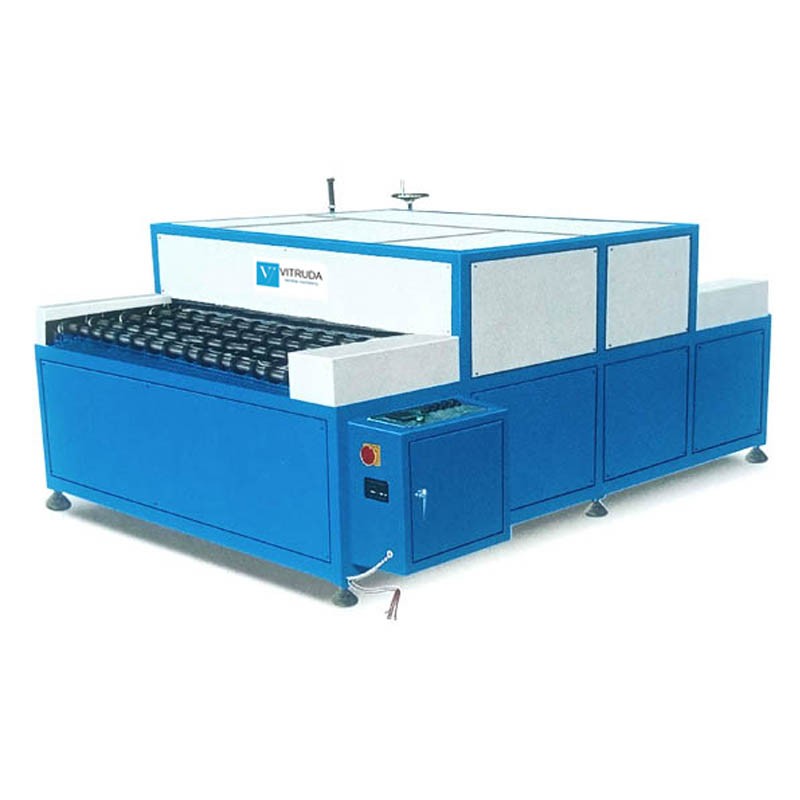

Insulated Glass Horizontal Rolling Machine

DESCRIPTIONS

This BRYW1600A insulated glass horizontal rolling machine is a unique insulated glass machine for producing composite rubber strip-type insulating glass.
The lifting mechanism adopts one-way overall adjustment, unified lifting, lowering, and smooth and flexible rotation.
With high efficiency, energy-saving design, and automatic control of working temperature, it is the economic insulated glass production equipment for manufacturing insulated glass and energy-saving aluminum and PVC windows.

FEATURES

• Adjustable heating temperature.
• Adjustable working speed.
• Processing insulating glass thickness adjustable.
• The machine completes the glass Heating and rolling at one time.

Insulating glass sealing spacer

TECHNICAL SPECIFICATIONS

• Power supply: 380 V/50 Hz
• Total power: 18.37 kW
• Max glass size: 1 500x2000 mm
• Min glass size: 350x350 mm
• The thickness of the original glass:  40 mm
• Working speed: 0~5 m/min
• Overall dimension: 2840х 1820x1000 mm
• Net weight: 600 Kg
