  • SQJ01 UPVC Window Corner Cleaning Machine

SQJ01 UPVC Window Corner Cleaning Machine

  • Product Item : SQJ01-120
  • Color : gray/white
  • Country of Origin: China
  • Application: Designed for PVC window corner automatic cleaning
  • Product description:UPVC window corner cleaning machine is suitable for cleaning the surface and outside of the uPVC window and door corners; China PVC window corner cleaning machine for sale.
  • Inquiry

SQJ01 uPVC Window Corner Cleaning Machine

PRODUCT DESCRIPTIONS

1. This uPVC window corner cleaning machine is suitable for simultaneously cleaning the outer contour of the door and window corners and the upper and lower welds.
2. It is necessary to customize special corner cleaning cutter for each profile.
3. Put in the PVC window frame corner on the worktable and automatically run the PVC corner cleaning process.
4. Complete a thorough cleaning of a PVC corner within 20 seconds.

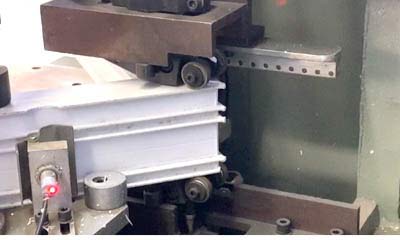

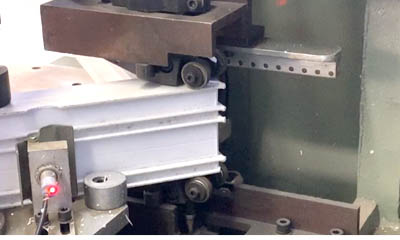

uPVC window corner cleaning machine cutter and corner cleaning

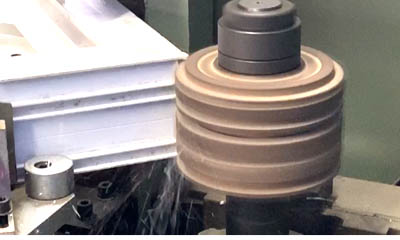

pvc window corner cleaner cutter pvc window corner clean process

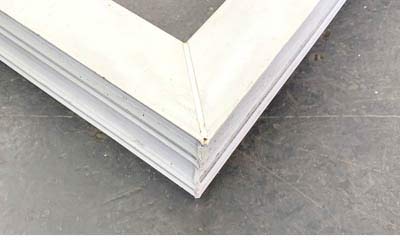

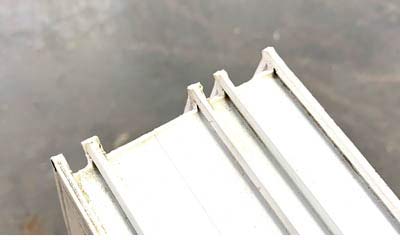

uPVC window corner cleaning machine corner cleaning effect


cleaning effect of pvc window corner


TECHNICAL SPECIFICATIONS

Power supply
380 V/50 Hz or customer specification
Input power
1.1 Kw
Dimensions:(Width×Depth×Height)
1100×700×1400 mm
Weight when empty
400 Kg
Air pressure
0.5~0.8 MPa
Air consumption
15 L/min
Main-shaft Revolution
2800 r/mm
Milling length
30~120 mm
Milling width
30~110 mm

*All specifications, dimensions, and design characteristics are shown in this automatic pvc corner cleaning machine are subject to change without notice.
